Installing Continental M & E series

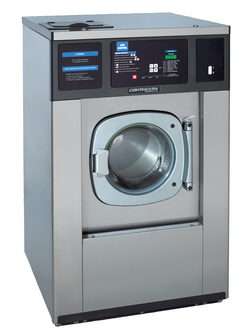

Continental M & E Series

Chemical Corner – Washington Automated

Chemical Signals – 220v ac (most models) – Located in panel on back of machine.  These washers use the different segments for the different signals.  The signals are the five screws/terminals located in back panel.  They have pictures for identification.

The signals are as follows (left to right): Common, Pre-Wash, Wash, Bleach, and Sour/Soft.

Pump Power – Continental does not supply terminals for pulling power for external pumps.  You will need to find another source of power when installing Continentals.

Programming – The M & E series washers are primarily sold with the "Logi" and "Inteli" controls.  All Continental machines use a segmented style to programming.  The Logi style controllers come with 8 formulas that can be altered in almost every way.  (Time, Temp, Action, Etc.)  The Inteli style controller is clearly Continentals most advanced programmer, and thus offers the Chemical Rep. the most versitility.

I copy/pasted some info for both the Logi and Inteli Controls below.

Link to M Series: http://www.continentalgirbau.com/m-serieswashersopl

Link to the E Series:  http://www.continentalgirbau.com/e-serieswashers

Note:  You will need to sign up as a member to receive the manuals.

Logi Control

"Superior programmability means laundries can properly clean a variety of fabrics and load types depending on specific laundry needs. The highly flexible Logi Control offers eight individually modifiable programs—each with up to nine baths, including multiple pre-wash, wash and rinse cycles. Variables within each bath—including wash temperature, water levels, cycle times, rotation and G-force extract speeds—can be individually programmed for maximum efficiency given the load type. Despite their advanced technology, the controls couldn’t be simpler to use. Once the programs are set, operators simply select the program number and press start!"



Inteli Control





"The most advanced programmable control available, the Inteli delivers 20 individually modifiable, phase-to-phase programs, and up to 79 owner-programmable options. This control is perfectly suited for laundries needing a high level control for cleaning specific types of fabric – from the most delicate silks, suedes and wools, to durable denims and Gore-Tex. A memory card – an added slice of ingenuity – allows users to save programs and copy them onto multiple machines – conserving time and labor. The Inteli Control also offers 12 external chemical dosing ports for automatic chemical injection."
