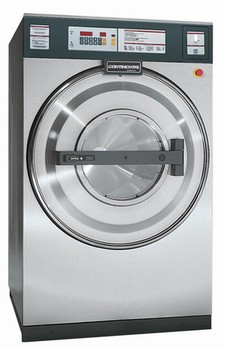

Installing Continental L series

Installing Continental L Series

Chemical Corner – Washington Automated

Chemical Signals – 220v ac – Located in panel on back of machine.  These washers use the different segments for the different signals.  (Use Posts X5-2àX5-6)

I.E. – Post X5-2 is for Prewash, Post X5-3 is for the Wash bath, Post X5-3 is for Bleach bath, etc.

Use the post labeled X5-1 for supply common (220v ac).

Programming – Continentals L Series Washers come with 1 of 2 microprocessor controls.  Below you can find the information for both controls (copy/paste from the Continental website).  Find more information about these controls here: http://www.continentalgirbau.com/l-seriesprogramming

Note:  You will need to sign up as a member to receive the manuals.

Premier Microprocessor Control
Continental’s Premier Microprocessor (PM) Control offers an easy-to-use programming system featuring 99 program selection options. Designed for flexibility, the control offers 20 pre-programmed and 79 user-programmable options to meet your unique on-premise laundry processing requirements. Everything from water temperature, wash action and fill levels, cycle time, delayed start, automatic cycle advance, automatic chemical injection, and extract speed are programmable to properly clean a variety of fabrics.

Select Microprocessor Control
(Available only on 18- to 50-pound capacity models)
Continental’s Select Microprocessor (SM) Control offers a flexible and reliable control option that features eight pre-preprogrammed selections. Additional programming flexibility includes programmable temperature control by degree in most baths, water level, soak delay, and cool-down. Optional program acceleration for quick rinse and spin cycles can be enabled or locked out from operator. control.  And, programming functions on the SM Control are accessible through a coded entry, which prevents accidental misuse by unauthorized personnel. The SM Control also features total cycle run audit capability and an easy-to-read cycle indicator display.
